Low level database access

OGS provides two interfaces to access SQL databases:

  • Access to the "local" station.fds database through the Firebird API
  • Access to any other database using ADO

Local station.fds interface​

The "local" database access is automatically initialized and only allows to access the station.fds. Note, that this connection is shared with the OGS core and also used by the core.

The following functions are available:

  • asdasd
  • asdasd

ADO interface​

The ADO interface allows connections to any other database, as long as OleDB or ODBC drivers are installed. As OGS is (currently) a 32-Bit application, it also uses the 32-Bit OleDB/ODBC drivers.

Microsoft SQL Server​

Firebird Server​

To access a Firebird database using the ADO interface, the "official" Firebird ODBC Driver is used together with the Microsoft OLE DB Provider for ODBC.

The driver can be used by either creating a datasource (DSN) using the ODBC-Datasources (32-Bit) editor or by directly specifying all parameters in the connection string.

Full connection​

A full connection string is specified as follows:

Driver=Firebird ODBC Driver;UID=SYSDBA;PWD=masterkey;DBNAME=C:\path\mydatabase.fdb

DSN connection​

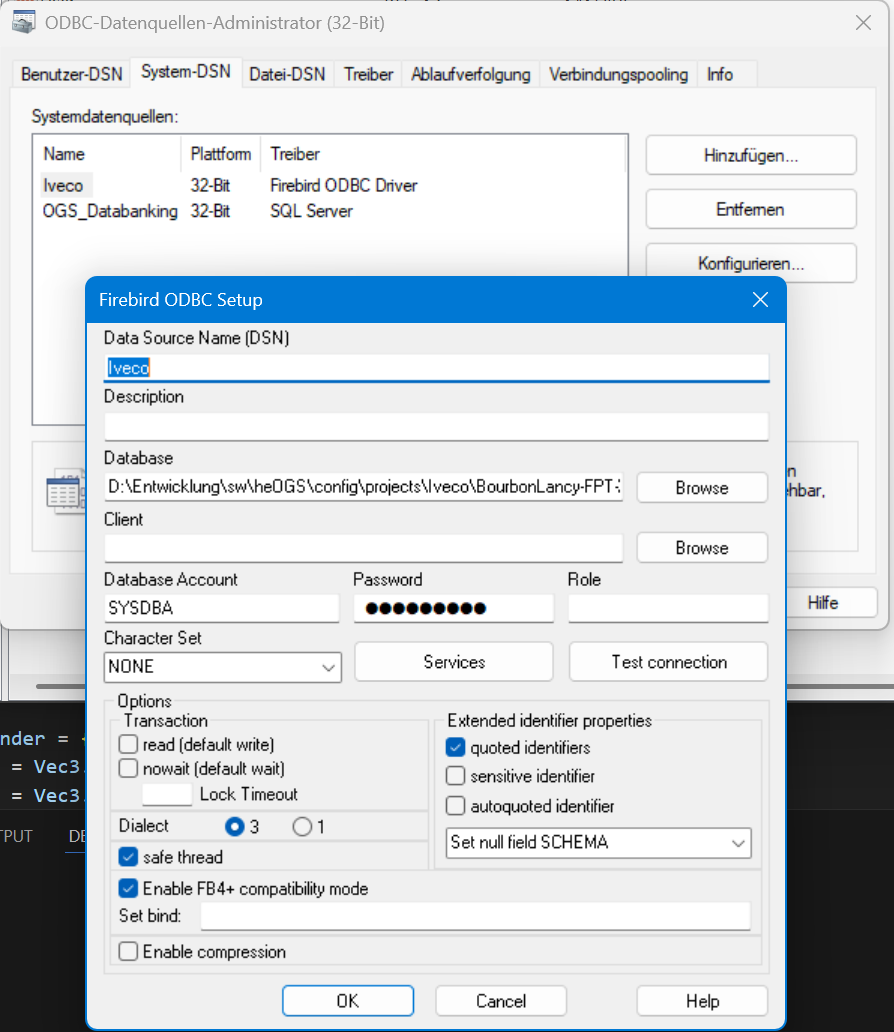

To use a DSN, one must be created first. To do so, start the ODBC-Datasources (32-Bit) from the Windows start menu and create a new DSN:

alt text

The connection string then is as follows:

'Provider=MSDASQL.1;Persist Security Info=False;Data Source=Iveco'
