Configuration (`appdata.json`)

Location​

Solutions file view:

…/solutions/configurations/appdata/content/edit/appdata.json?path=he-ctrlx-app-commgo%2F

Required Fields​

IPAddress, IPPort, SerialNumber, Psets (array of program definitions).

Supported PSet fields: ParameterSetName, ParameterSetNumber, WorkpieceId, TorqueTarget (and Min/Max/Threshold), AngleTarget (and Min/Max), TimeMin/TimeMax, Method, Direction, Unit, CurveDataEnabled.

Example​

{
  "IPAddress": "10.10.2.177",
  "IPPort": 4545,
  "SerialNumber": "GP1010003",
  "Psets": [
    {
      "ParameterSetName": "Bolt M10",
      "ParameterSetNumber": 1,
      "WorkpieceId": "M10_BOLT",
      "ProgramNumber": "1",
      "TorqueTarget": 50,
      "TorqueMin": 45,
      "TorqueMax": 55,
      "TorqueThreshold": 5,
      "AngleTarget": 0,
      "AngleMin": 0,
      "AngleMax": 0,
      "BoltCenter": 0.5,
      "TimeMin": 100,
      "TimeMax": 5000,
      "Method": 1,
      "Direction": 1,
      "Unit": 1,
      "CurveDataEnabled": false
    }
  ]
}

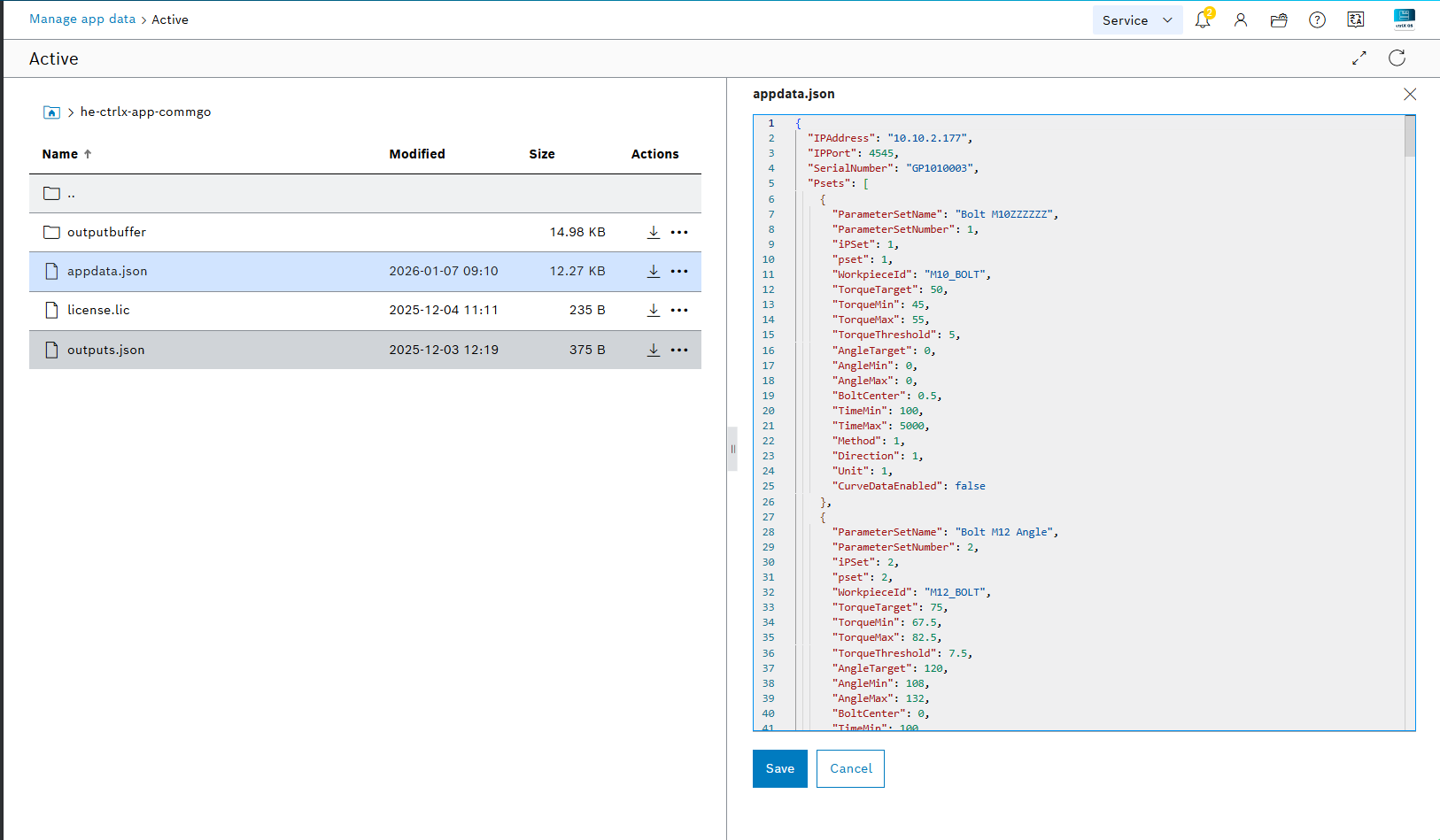

appdata.json editor view

Configuration Editor UI​

The application includes a Graphical User Interface to modify the configuration of the network settings and parameter sets directly without editing the JSON file manually.

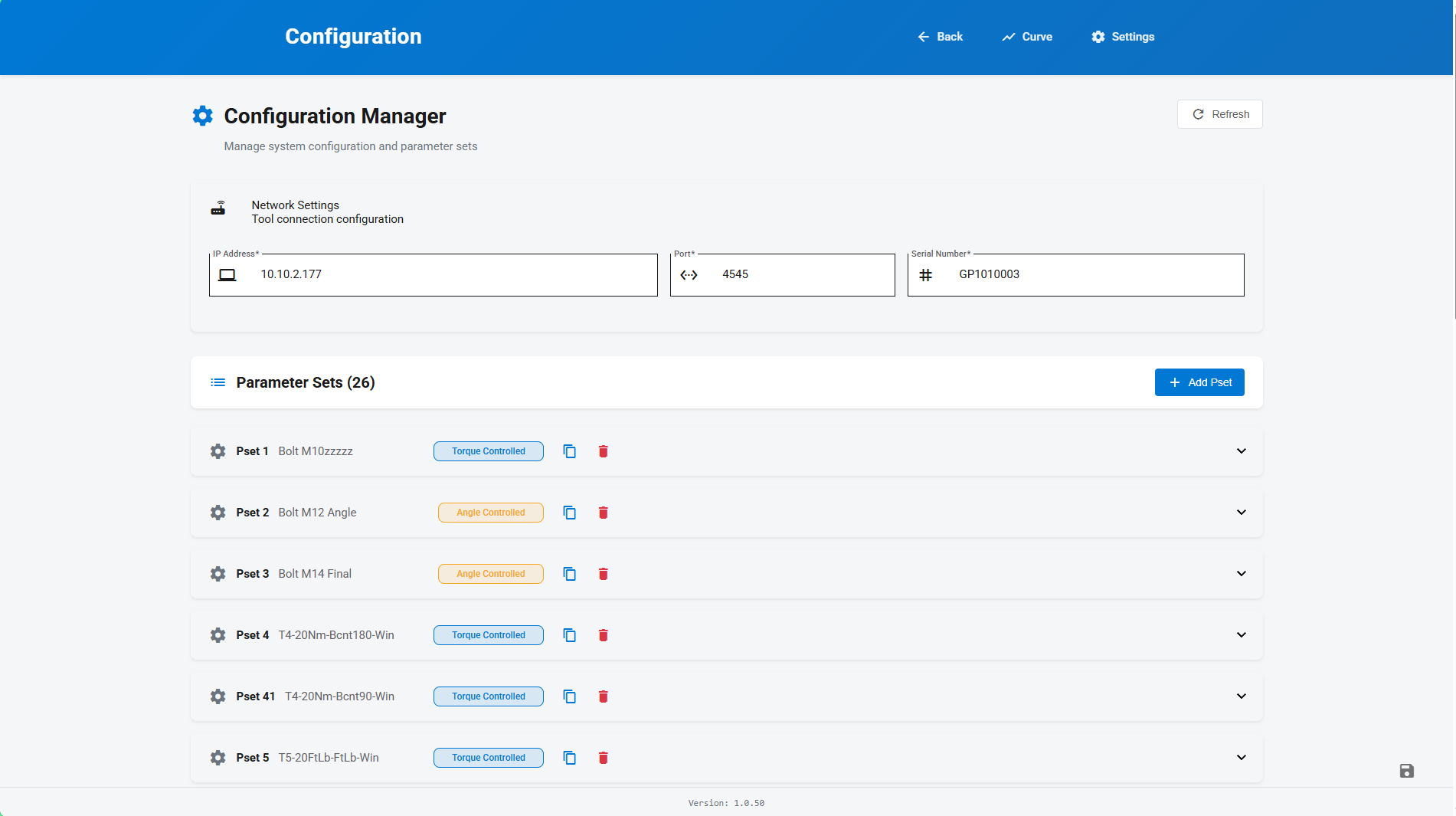

Overview Page​

The main configuration page displays the current network connection settings (IP Address, Port, and Serial Number) and a list of all configured parameter sets (PSets).

Configuration Overview

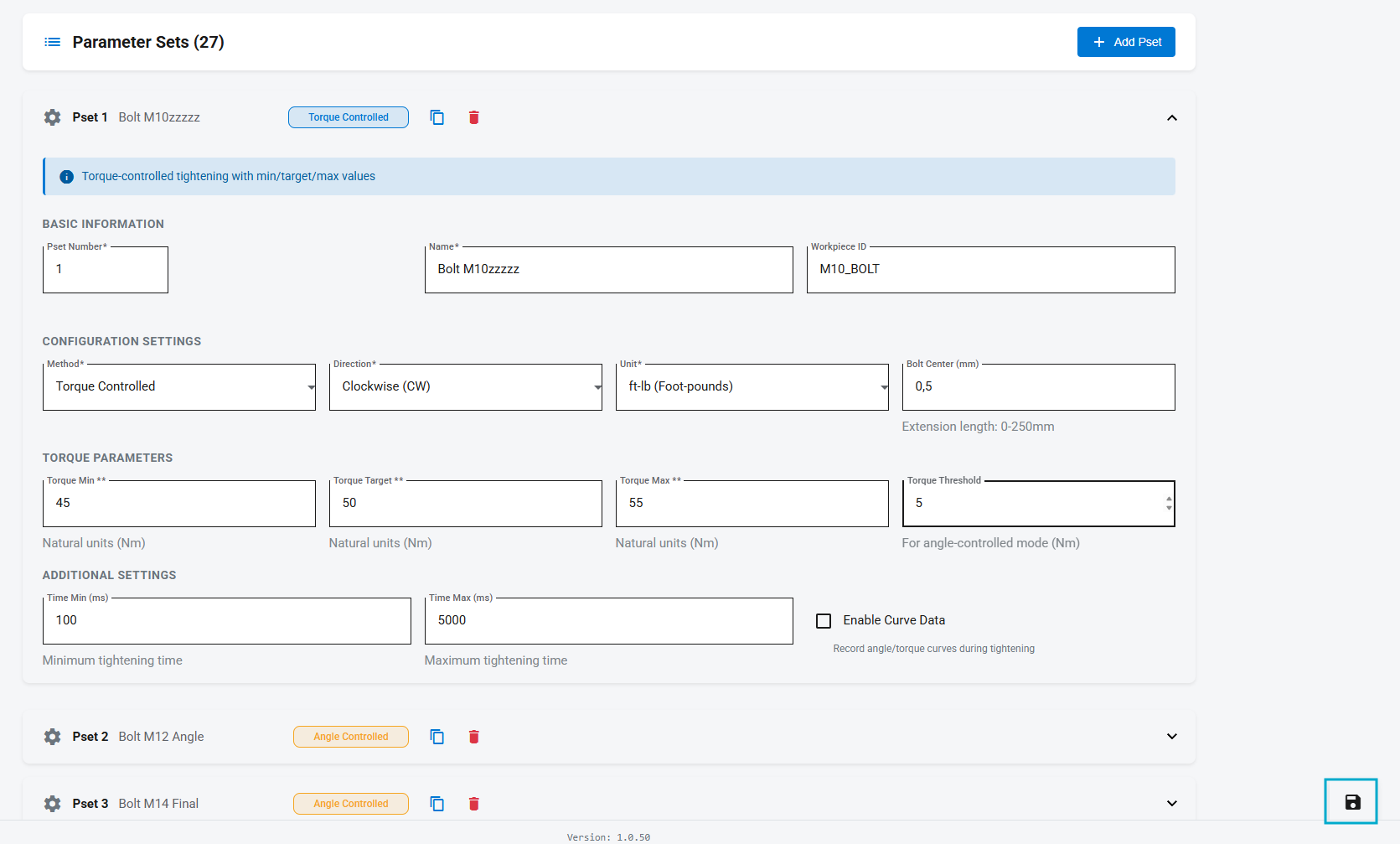

Parameter Set Editor​

Expanding a parameter set displays its specific configuration settings, such as PSet number, name, workpiece ID, direction, unit, and torque/angle parameters.

Parameter Set Detail
