CS351

Typical tool setups

Single channel handheld tool

Using an ErgoSpin tool with integrated start button and CW/CCW switch on the tool (optionally using the NokAck button).

The signals used in this scenario are:

• CW
• CCW
• CcwSel
• CwLock, CcwLock
• CwAnd, CcwAnd

Single channel spindle with external start

Using an ErgoSpin tool or a spindle with external CW/CCW start (optionally using a NokAck button).

The signals used in this scenario are:

• CW
• CCW
• CcwSel
• CwLock, CcwLock
• CwAnd, CcwAnd

OpenProtocol IO access

Aditional I/O signals (8 in, 8 out) can be accessed through OpenProtocol and mapped to any I/O through the PLC assignment table.

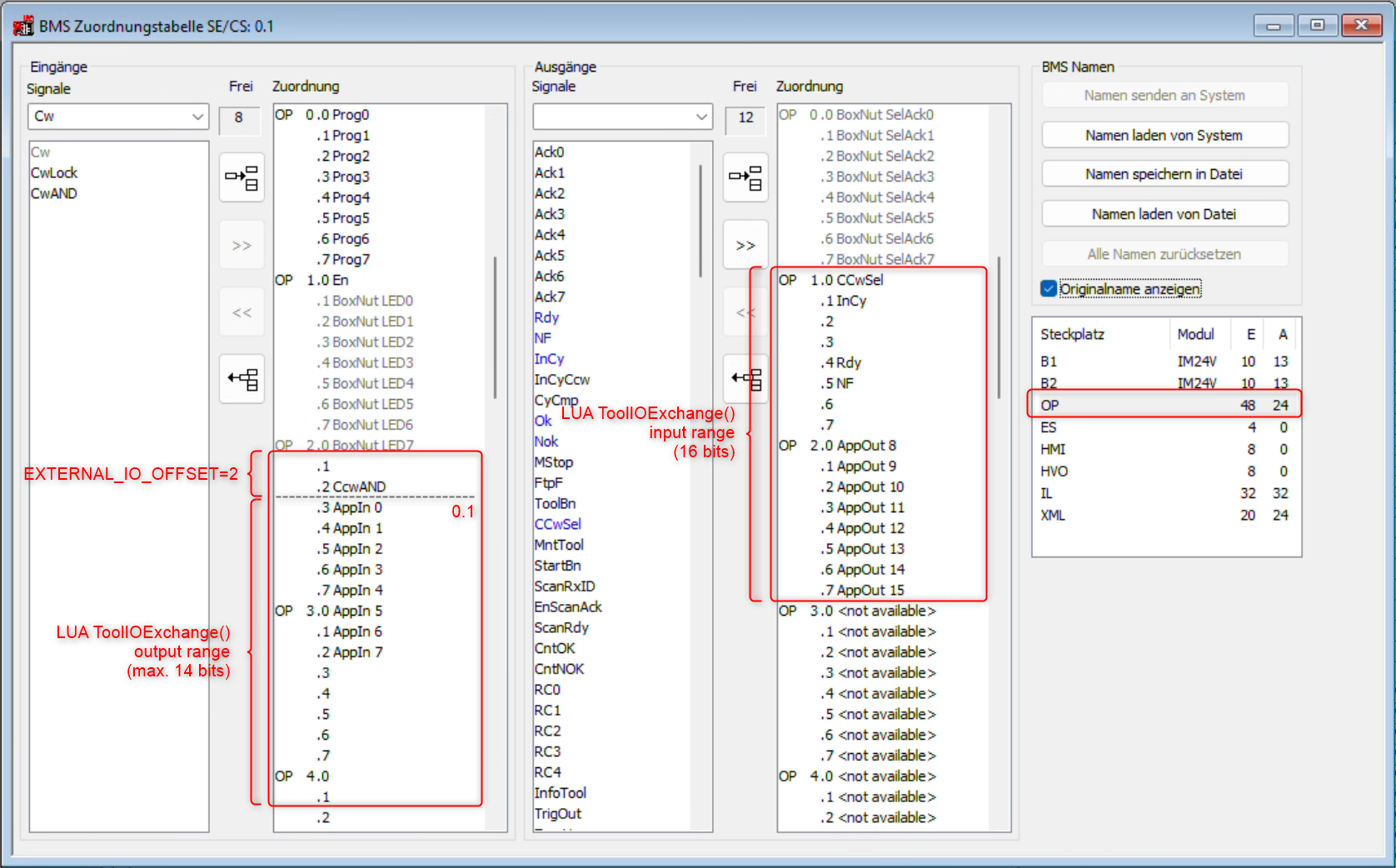

In CS351, the system actually provides 16 inputs and 16 outputs (see the following screenshot). These are cyclically read/written by OGS:

However, only a subset is usable as custom I/O, as parts are required for operating the tool:

• CS351 Inputs OP2.1-2.2: Used by OGS for ActEn and CcwLock/CcwAnd
• CS351 Outputs OP1.0-OP1.7: Used for tool status inputs

To access the custom IO signals from LUA, the following is required:

1. Set EXTERNAL_IO_OFFSET= in station.ini in the [OPENPROTO] section to a non-zero value. The value defines the actual offset, where the LUA output signal start - usually this is set to EXTERNAL_IO_OFFSET=2, so all LUA output signals starting from OP2.3 (CS351 inputs) can be controlled.

2. Cyclically call to ToolIoExchange() from LUA.

Note, that the number of available outputs vary according to the EXTERNAL_IO_OFFSET= definition. The offset given moves the process data image for the LUA function accordingly - with offset=2, bit 0 of the data returend from the LUA function is then OP 2.3 (as shown in the screenshot above).

The input data (for the LUA function) always reports all available 16 inputs, i.e. the custom signals are usually in the upper 8 bits of the returned data (mapping to OP 2.0 - OP 2.7).

LUA ToolIoExchange() function

Function Name	Return Type	Description	Tags
ToolIoExchange(tool:integer, output:integer)	input:integer, error:string	Writes output data to the tool interface and returns the current input data. If and error occurs, then error is non-nil and provides an error message.	None

Sample LUA code

Here is some sample code, mirroring the custom inputs to the custom outputs:

-- station_io.lua

-- Requirements:
-- * Define Channel_01 as OpenProtocol tool (CS351/KE350) in station.ini
-- * Set EXTERNAL_IO_OFFSET=2 in [OPENPROTO] section

-- Handle the OpenProtocol IOs
local prev_output = nil
local prev_input = nil
local output = 0
local channel = 1           -- use Channel_01
local tool_error = nil

-- StatePoll is called cyclically
local function OnStatePoll(info)

    local wf = info.Workflow

    -- Cyclically update the OpenProtocol I/O data
    local input, err = ToolIOExchange(channel, output)
    if err then
        if not tool_error then
            SetLuaAlarm('ToolIO', -2, param_as_str(err))
            XTRACE(1, param_as_str(err))
            tool_error = true
        end
        return nil
    else
        if tool_error then
            ResetLuaAlarm('ToolIO')
            XTRACE(8, 'Tool3 IO running!')
            tool_error = nil
        end
        if output ~= prev_output or input ~= prev_input then
            XTRACE(16, string.format('IO changed. Input: %02Xh, Output: %02Xh', input, output))
            prev_output = output
            prev_input  = input
        end
    end

    -- mirror input to output - note: custom inputs are the high byte!
    output = input / 256

end

if StatePollFunctions ~= nil then
    StatePollFunctions.add(OnStatePoll)
end
