Bosch Rexroth Nexo and Nexo 2 wireless battery tools

The Nexo cordless nutrunners are advanced battery powered tightening tools with high accuracy and reliability. They are certified for safety-critical tightening connections according to VDI/VDE 2862. The tools feature built-in controllers with WiFi communications. They use the OpenProtocol communication protocol to communicate with the heOGS software. They also support traceability data and curve output, see tool data http output.

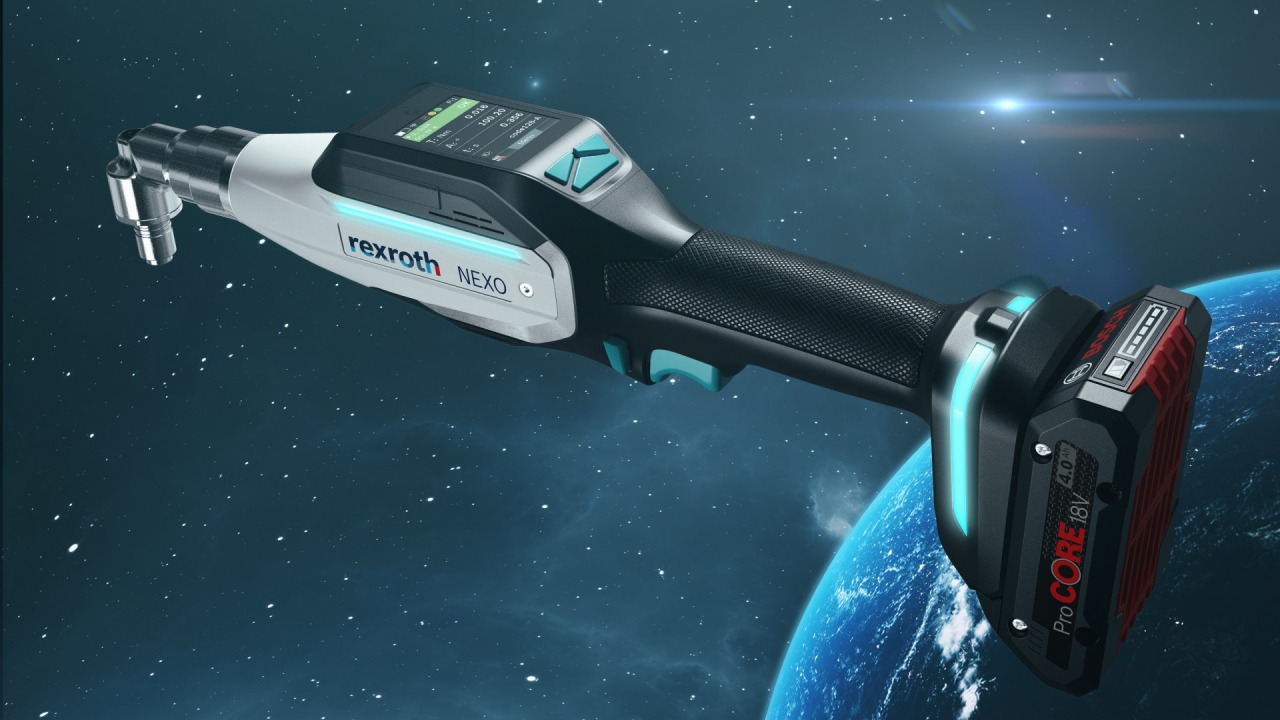

Nexo2 cordless nutrunner

Note, that the Rexroth product site and catalog do not list the Nexo 2 tools at the time of writing this article, but there is a marketing site with information about Nexo 2.

Installation and configuration

OGS project configuration

For generic information about how to configure OGS with OpenProtocol tools, see OpenProtocol documentation.

Tool registration and configuration

The Nexo and Nexo 2 tools are identified by specifying the tool type NEXO in the [OPENPROTO] section of station.ini.

A typical configuration of the [OPENPROTO] section looks like the following :

[OPENPROTO]
; Channel/Tool 1 parameters
CHANNEL_01=10.10.2.184
CHANNEL_01_PORT=4545
CHANNEL_01_TYPE=NEXO
; Enable time synchronization
CHANNEL_01_CHECK_TIME_ENABLED=1
; Force CCW switch selection for rework/loosen
CHANNEL_01_CCW_ACK=1
; to enable curve transmission, set to 1:
CHANNEL_01_CURVE_REQUEST=1

The typical parameters are (for more details about the possible parameters, see OpenProtocol documentation):

  • CHANNEL_<channel>: Define the IP address used to communicate with the tool.
  • CHANNEL_<channel>_TYPE: Defines the OpenProtocol communication variant, must be set to NEXO.
  • CHANNEL_<channel>_PORT: (optional) Define the TCP port number used for OpenProtocol(typically 4545).
  • CHANNEL_<channel>_CHECK_TIME_ENABLED: (recommended) If set to a nonzero value, then the tools internal time is synchronized with the OGS date and time. For Nexo 1 this is highly recommended due to issues with the firmware NTP time sync.
  • CHANNEL_<channel>_CCW_ACK: (optional) If set to a nonzero value, then the CCWSel switch is monitored for the correct position - i.e. if OGS expects loosen, the switch must be set to the CCW position.
  • CHANNEL_<channel>_CURVE_REQUEST: Set to 1 to enable curve transmission over OpenProtocol, set to 0 to disable. Set to 1, if you need the curve data in OGS (e.g. for display or dynamic curve analysis with LUA scripting). Disable (set to zero), if you don't need it (for performance reasons). As Nexo and Nexo 2 have built-in data output protocols, it is only needed in special setups, where OGS needs the curve data.

Tool data output

As Nexo and Nexo 2 have built-in features to send out data and curves (Traceability data) to backend data management systems, there is typically no support from OGS needed.

See Tool data http output for more information about how to configure the tools built-in data output drivers.

Tool configuration

Firmware version

Please contact Bosch Rexroth for information about current firmware versions - it is recommended to use up-to-date firmware for compatibility, performance and security!

Tool mode

The Nexo tools can operate in manual or automatic mode. For OGS to be able to control the tool, automatic mode is required. Depending on your requirements, you can configure the tool to enable switching modes through the tool display (not recommended).

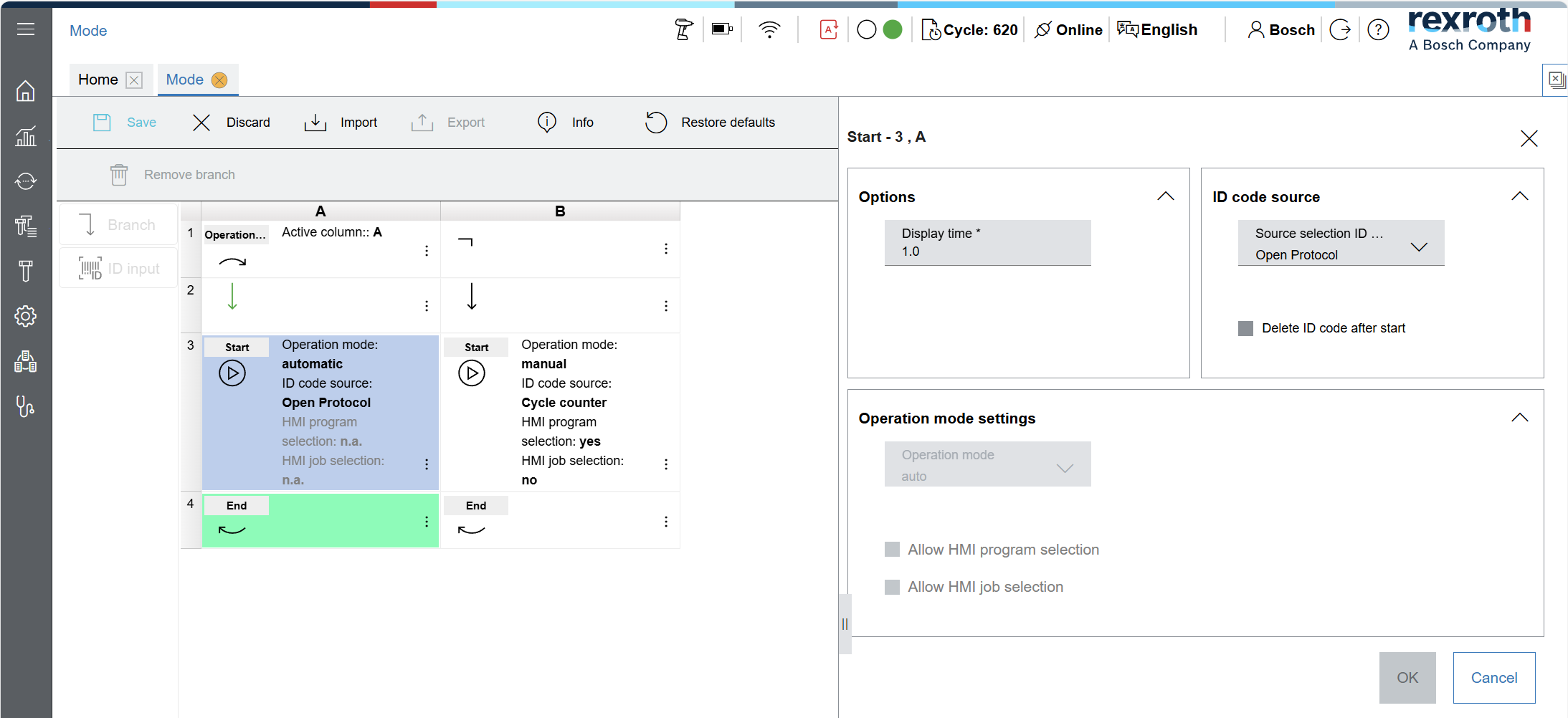

The mode must be setup as follows:

alt text

The relevant settings are:

  • ID code source: must be set to OpenProtocol, so OGS can send the ID
  • Operation mode settings: set operation mode to auto

Make sure the set the active column to A!

alt text

The relevant settings are:

  • ID code source: must be set to OpenProtocol, so OGS can send the ID
  • Operation mode settings: set operation mode to auto

Make sure the set the active column to A!

OpenProtocol configuration

Enable and configure OpenProtocol

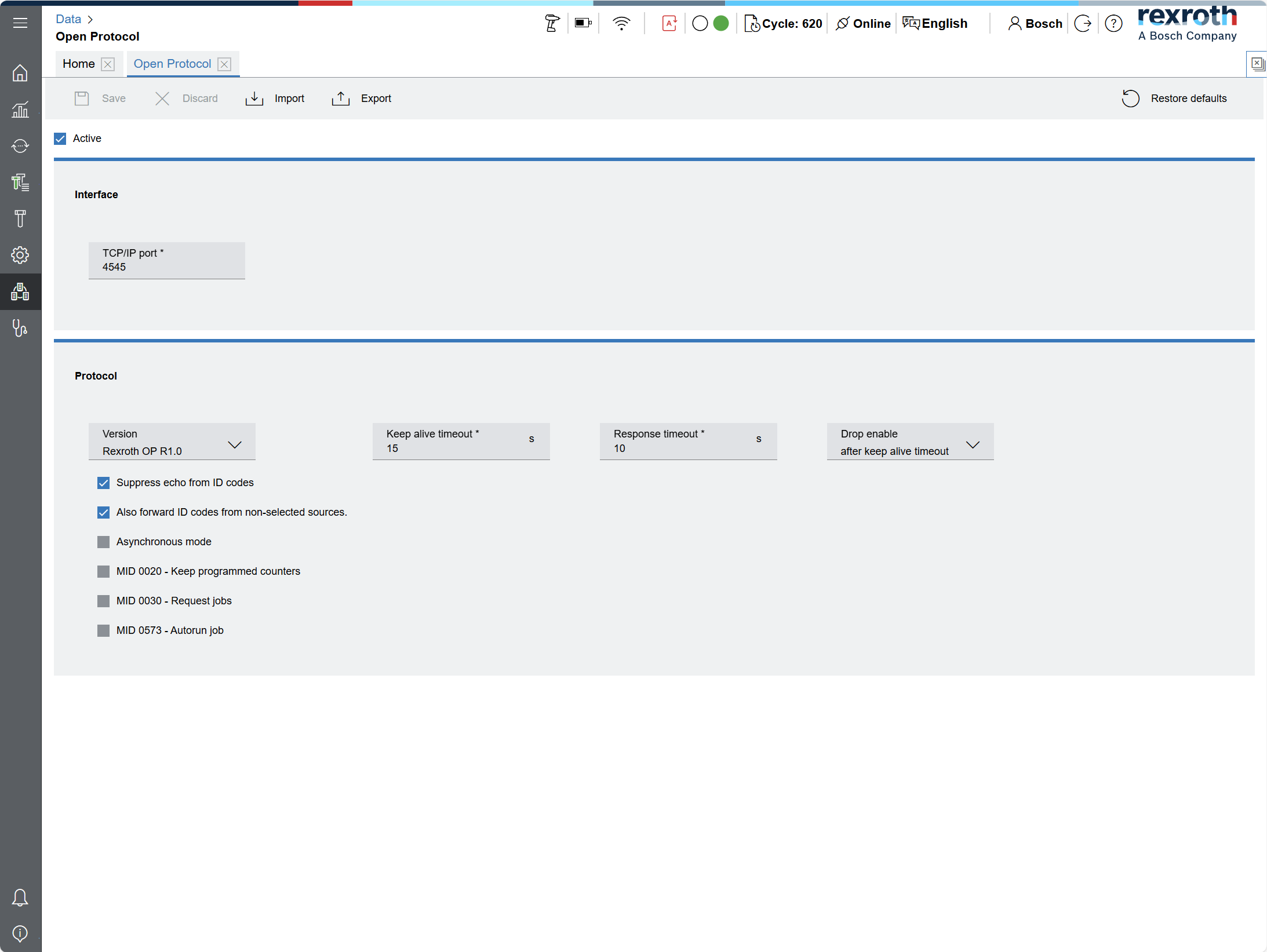

As OGS needs OpenProtocol to control the tool, the OpenProtocol (Data → OpenProtocol) must be configured as follows:

alt text

alt text

Setup PLC signals

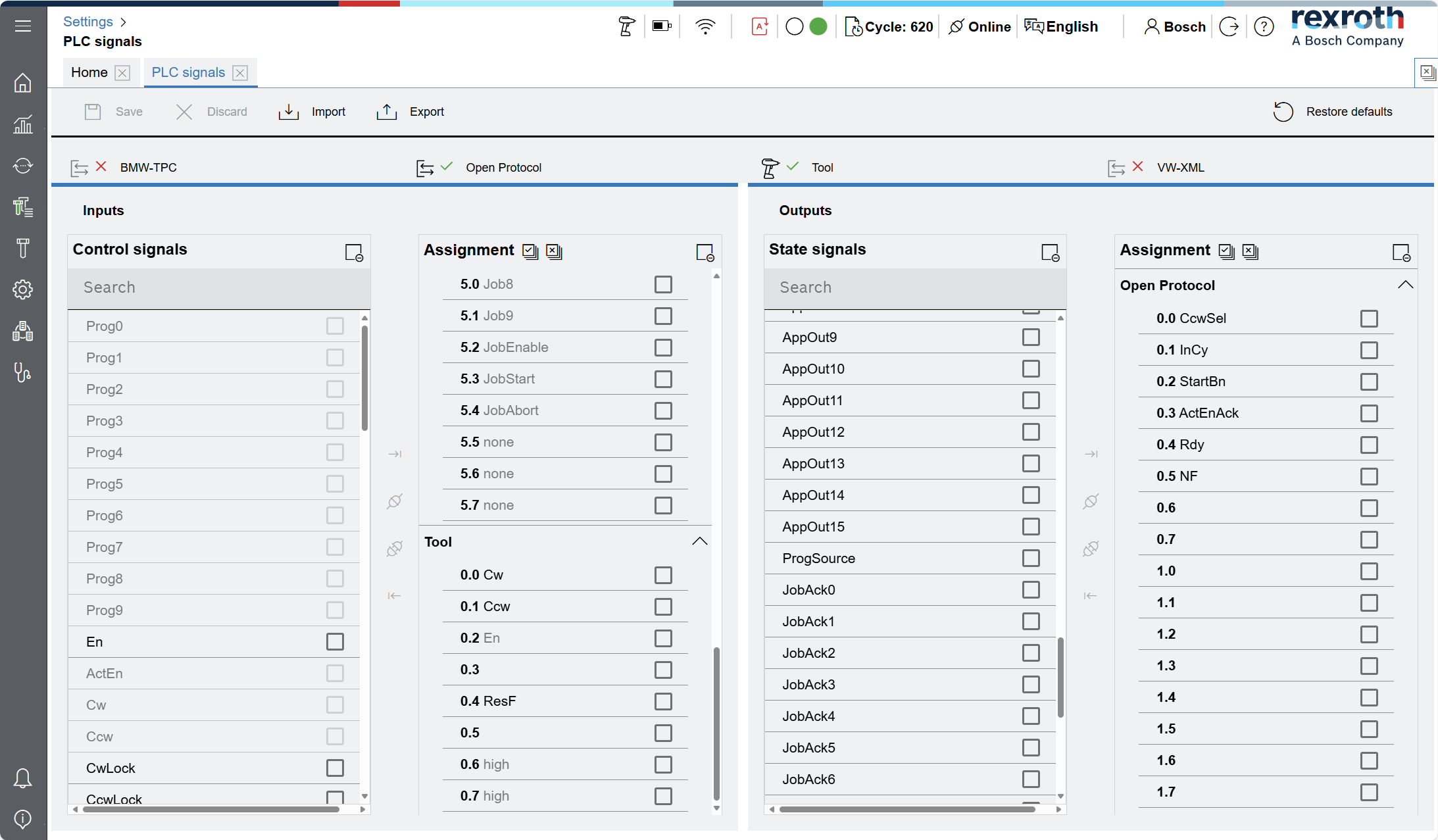

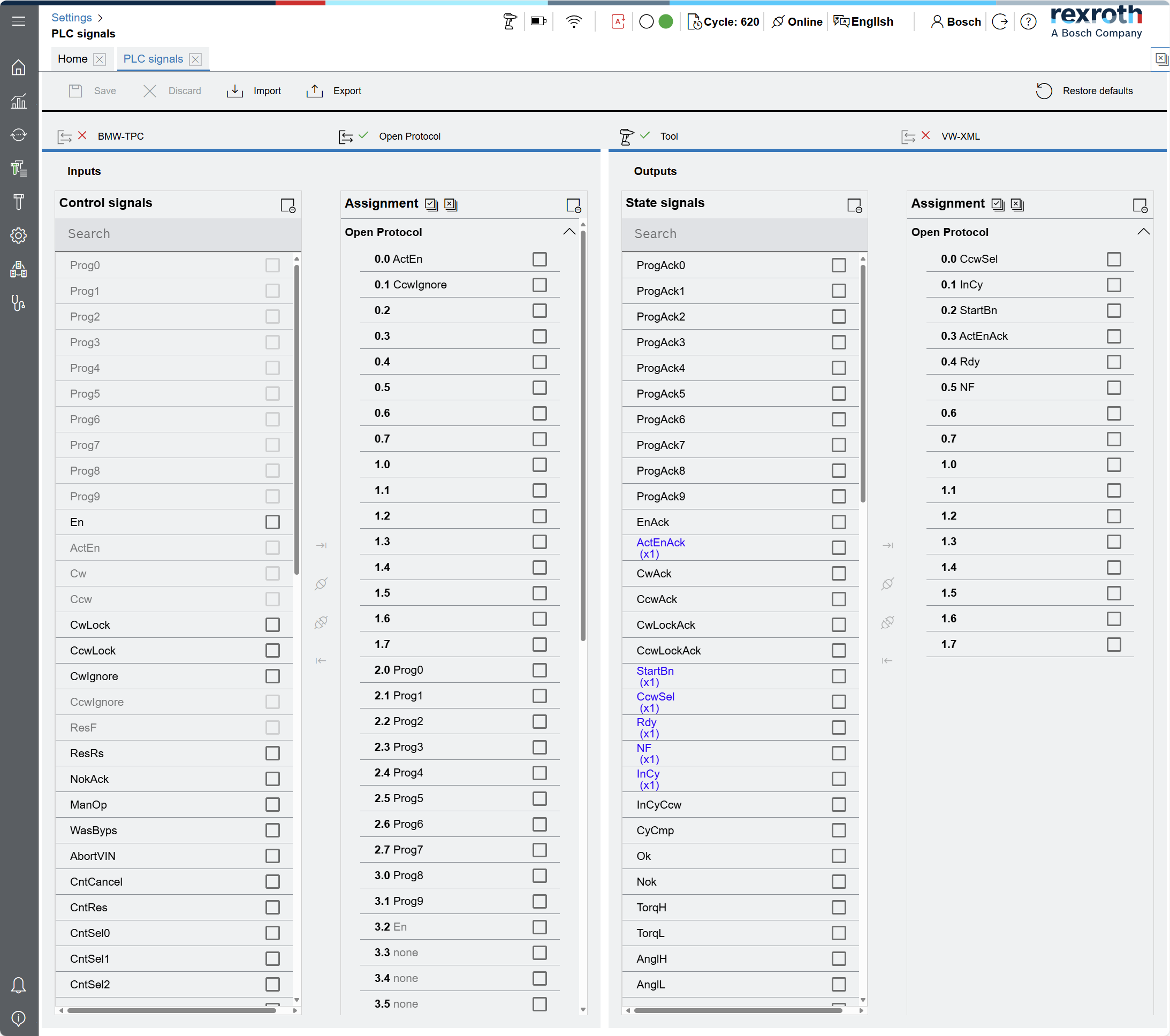

To allow controlling the tool correctly, the PLC signals should be set up as follows:

alt text alt text

alt text alt text

Important: - Never assign signal En to opctrl input 3.0 – this may enable the tool without control of the heOGS software. - Never assign signal En to tool input 0.2 – this will enable the tool without control of the heOGS software. - Always assign signal CcwIgnore or CcwLock to opctrl input 0.1. This allows OGS to reliably block loosening loosening, even if the network connection to the tool gets lost.

Using the integrated scanner

Some Nexo models provide a built-in barcode scanner. This barcode scanner can be used instead of or in combination with any other ID-Code source in OGS. Using the Nexo scanner, it is therefore possible to start a workflow, select jobs or do other scan operations inside a workflow.

Please see the Nexo system manual for detailed information about how to use and configure the scanner. The following section shows a simple setup which allows the user to trigger the Nexo builtin scanner by pressing a button below the Nexo display.

Configure OpenProtocol

To enable ID-code forwarding, the option Also forward ID-codes from non-selected sources must be enabled in the OpenProtocol configuration (Home → Data → OpenProtocol):

alt text

Configure Mode setting

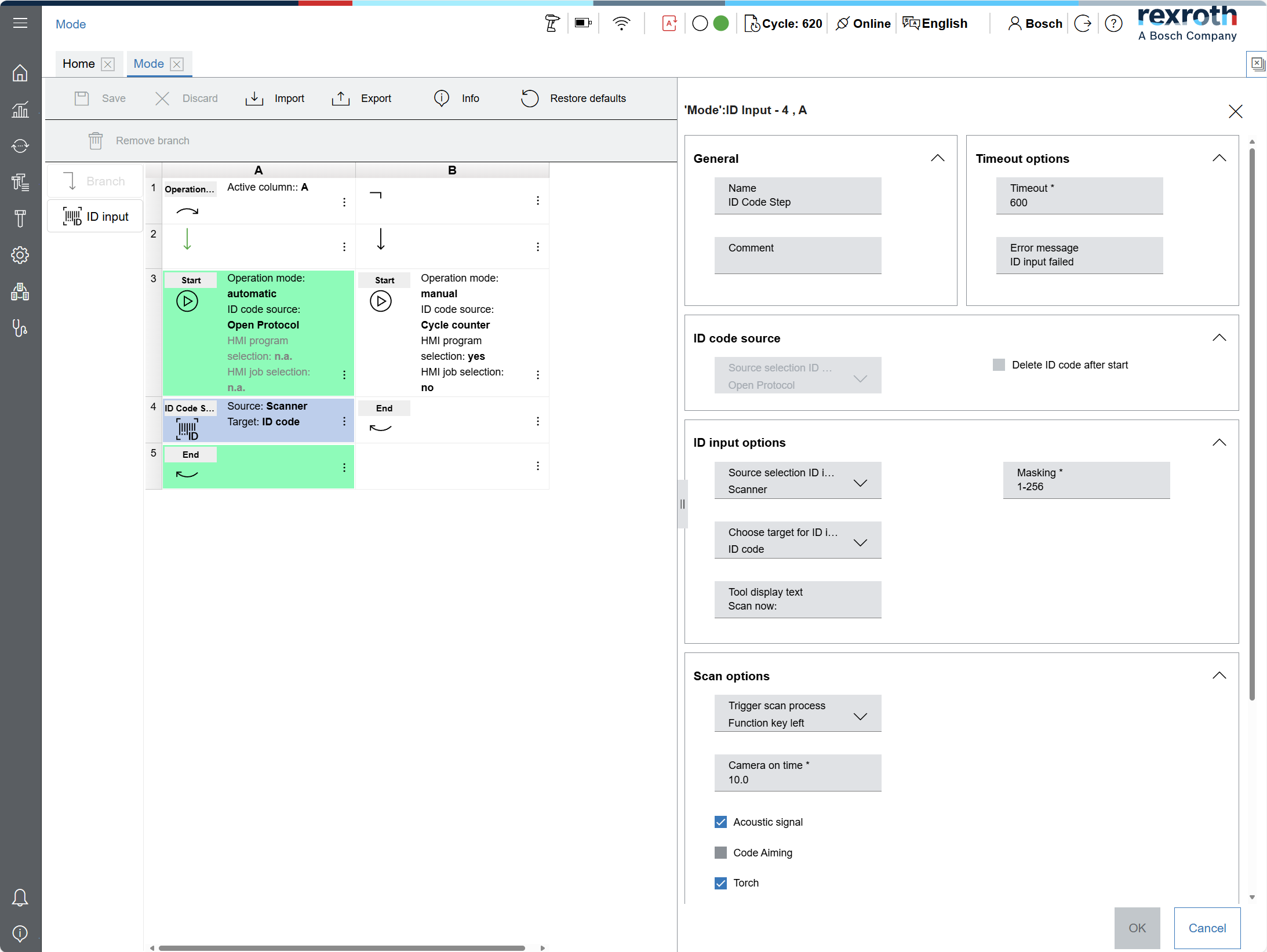

To enable the scanner, add an ID Input step to the Mode (Home → Mode) settings as shown in the following screenshot:

alt text

Data output configuration

To make Nexo and Nexo 2 to send out data and curves (Traceability data) to backend data management systems (like ToolsNet, CSP I-P.M., Sciemetric QualityWorX, QualityR, etc.), the builtin data output interfaces can be used.

To send data out to a central Sys3xxGateway/QualityR server, typically the following options are possible:

  1. (preferred) Use the “Standard Nexo” data output with the http transfer option. By default this transmits all step data and tightening curves
  2. Use the “Standard Nexo” data output with the http transfer option. By default this also transmits all step data and tightening curves, but sometimes causes troubles with the network infrastructure (firewall transversal, transmission of plaintext passwords).

The “Standard Nexo” data output with http transfer is the preferred option, else use “Standard Nexo” with FTP.

Data reported to Sys3xxGateway will use the following mapping by default:

  • Nexo IP address→Default Sys3xxGateway station name
  • Nexo channel name → if non-empty is used as Sys3xxGateway station name
  • Nexo channel number → Sys3xxGateway channel number
  • Tightening program name → Used as operation name (QWX)

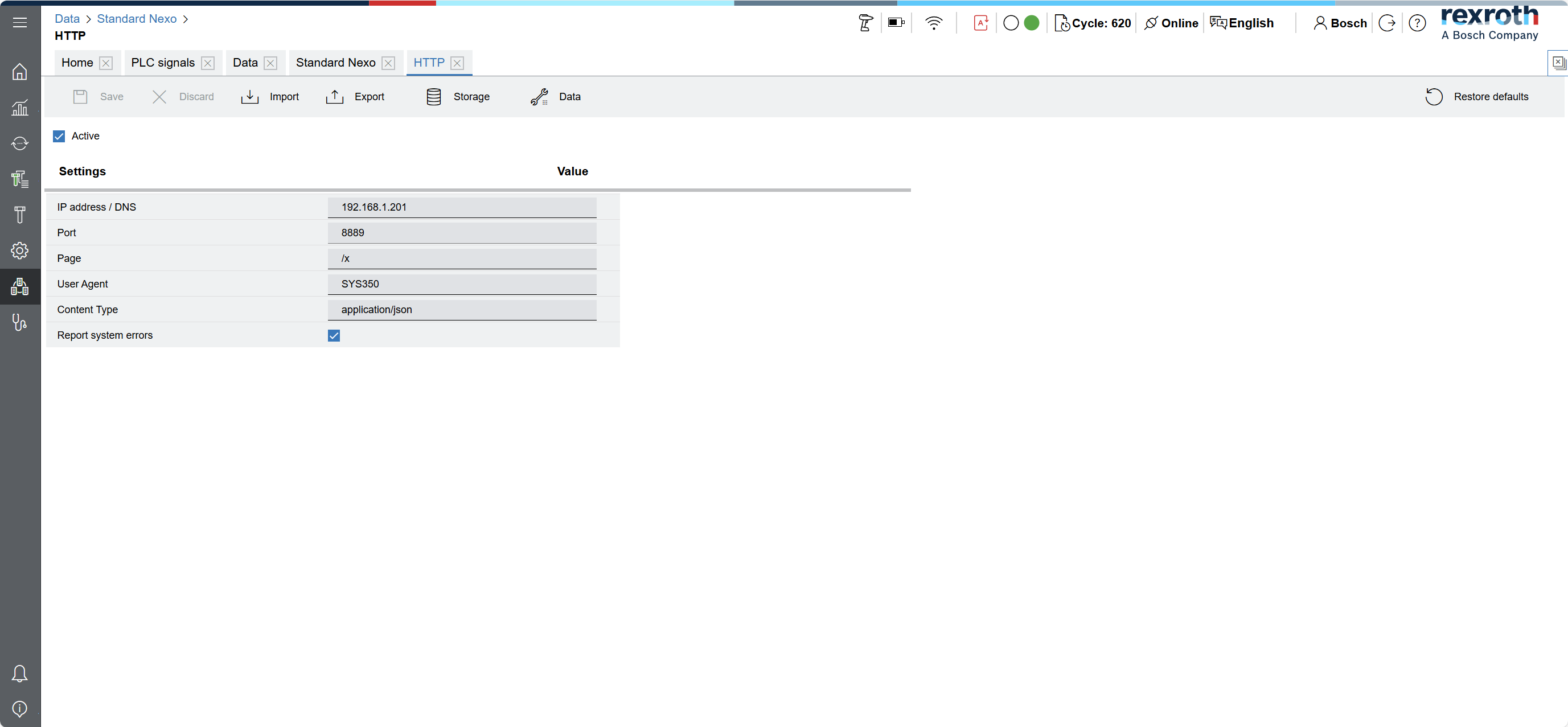

To enable http data output, use Home → Data → Standard Nexo and configure as follows:

alt text

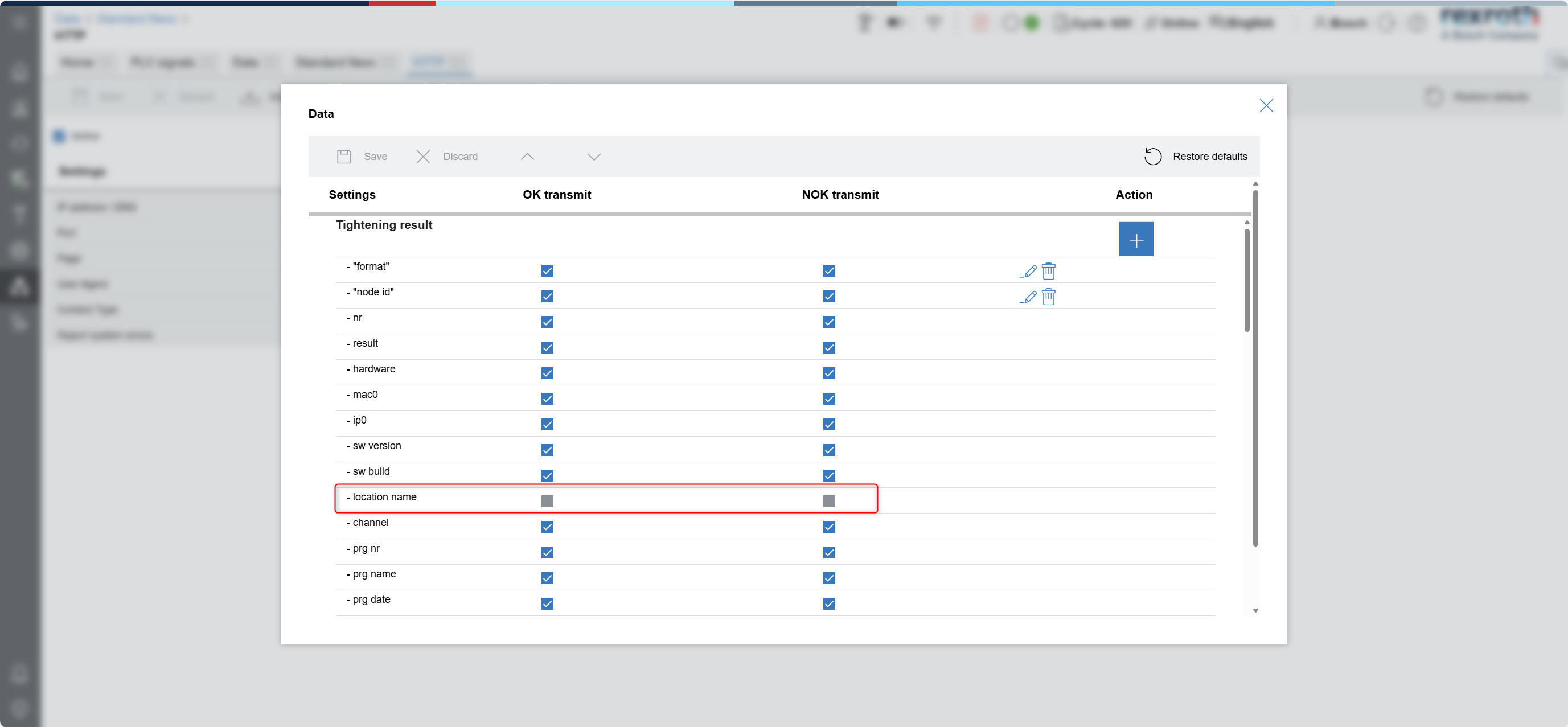

As the Nexo 2 http data output provides incorrect localtion information, make sure to configure the Data settings (click the button labeled Data in the header row) as follows (disable the location element):

alt text

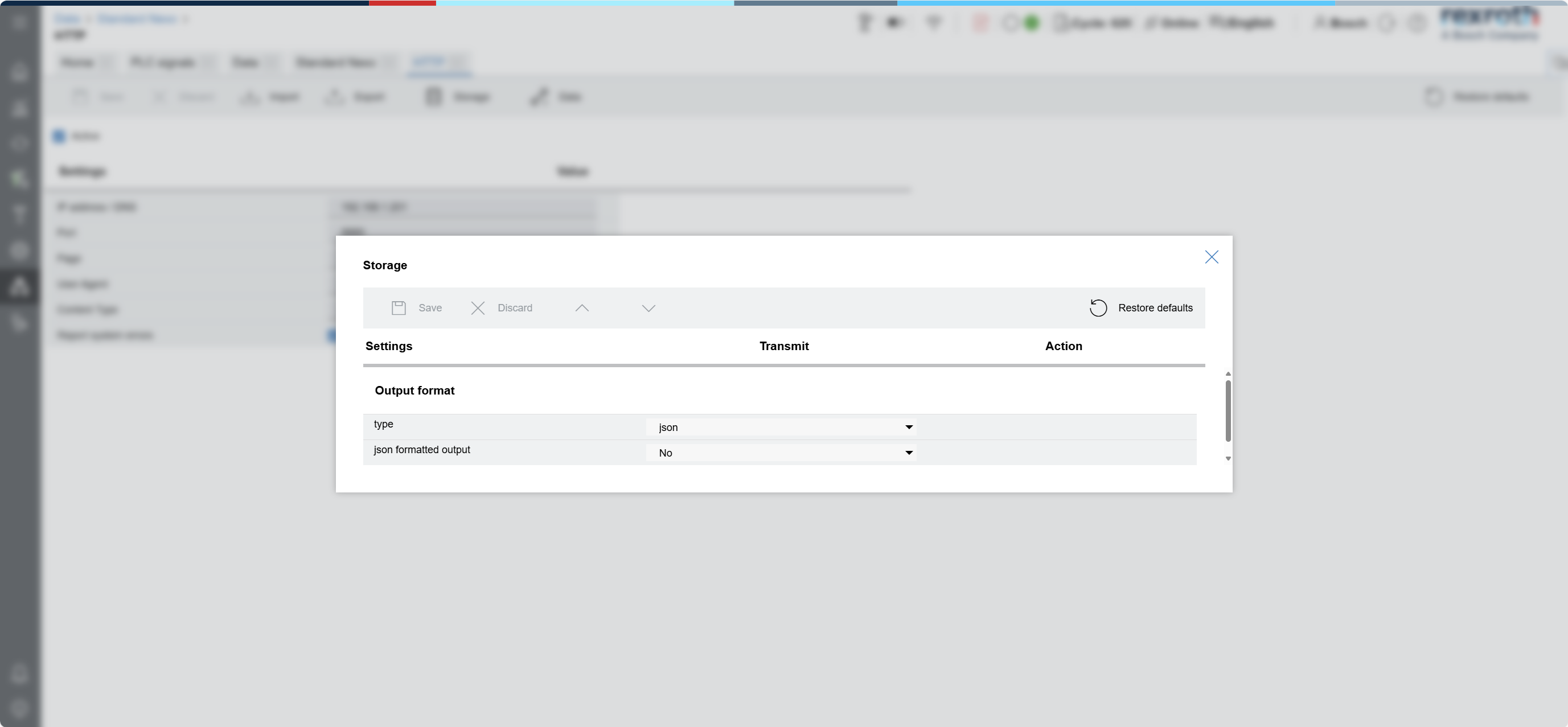

To minimize transmitted file sizes, go to the Storagesettings (click the button labeled Storage in the header row) and set "json formatted output" to No:

alt text

Nexo 1: Wifi notes

  • Nexo 1 has issues, if roaming is enabled. Make sure to disable the "roaming" setting in the wifi configuration.
  • Nexo 1 by default uses the insecure TKIP encryption for WPA2-PSK, make sure to switch to AES mode instead.
